Docs.

Reference manuals, getting-started tutorials, and system architecture specifications for the complete AxisOS™ Quad ecosystem. Find the answer. Run the command. Own every layer.

Canonical Synthesis · Architectural Records (2026)

Executive Foreword: The Sovereign System Behind the System

ARCHITECT & OPERATOR: Marc F. Crusan · Enterprise: Crusan & Co. · Co-Pilot: Antigravity (AGY)

ARCHITECTURE COMPENDIUM

Foundational Genesis & Seven Architectural Pillars

The engineering records in agents/documents/ chronicle the design, construction, calibration, hardening, and bench deployment of AxisOS™—a freestanding C99 direct syscall operating system designed to run cooperating local intelligence agents without cloud dependencies or third-party PKI baggage, while minimizing background flash writes and unexpected power-loss filesystem risk.

What began as an operator’s refusal to accept third-party bloat, runaway cloud subscriptions, and opaque software frameworks crystallized into an auditable local architecture. Grounded in Marc F. Crusan’s three decades of enterprise systems experience—including production in-memory messaging infrastructure—AxisOS™ prioritizes inspectable machine ground truth:

  1. Pure Monolithic Kernel Syscalls: Direct assembly entry stubs (crt0-bin.S, crt0-shell.S) issuing direct kernel supervisor calls (svc #0 on aarch64, syscall on x86_64), eliminating libc overhead and producing compact self-contained ELF binaries.
  2. The Silicon Doctrine: RAM-resident execution on physical bare metal (Raspberry Pi 4 Model B). The system loads into DDR4 RAM via axisos-initramfs.img so Step 2 serves as the primary runtime state. Leaving the physical micro-SD card unmounted during normal operation avoids routine background flash writes and reduces filesystem risk during abrupt power loss.
  3. RAMGAK Kinetics: The binary-search convergence protocol (O(log2 N)) that bisects and sizes the in-memory tmpfs working space systematically without guesswork.
  4. The Out-of-Band Mutual Safeword Protocol: Air-gapped local authentication using out-of-band mutual challenge-response safewords over local loopback or physical serial wire, avoiding external Certificate Authorities and cloud revocation dependencies.
  5. The Quad Mind: Cooperating local daemons operating across dedicated loopback ports (:8081 Zero Mind, :8080 Lite Vanguard, :8082 Axis-Agent, :8083 Axel) supported by optional local offline neural reasoning (:8088 Qwen2.5) and a web Comms HUD (:8085).
  6. Hardware Mesh Substrate: Node 001 (Mayor), an RP2350 Raspberry Pi Pico 2 W prototype operating on our shop LAN and mesh testbed, broadcasting UDP :50000 discovery packets.
  7. Evaluation Web Preview: Hosted at https://axisos.pro with an experimental browser-based Silicon Flasher preview utilizing the HTML5 FileSystem API.

This reference compendium organizes our architectural notes into clear engineering pillars, documenting what is available today in open-source repositories and published print manuals alongside active bare-metal prototypes in bench validation.


Quick Start

Up and running in three moves.

AxisOS™ — operator quickstart
// 1. clone the firmware repository
operator@AxisOS:$ git clone https://github.com/mcrusan/AxisOS-Firmware-

// 2. flash connected microcontroller or SBC node
operator@AxisOS:# python axisflash.py --target auto --firmware golden-latest
// device detected: [Pi Pico 2 W / RP2350] signature: [VERIFIED] flash: [OK]

// 3. launch the terminal viewer or connect to local comms HUD
operator@AxisOS> zero-comms --status
// node: 127.0.0.1:8085 [ONLINE] mesh: 3 nodes active. status: nominal.

192.168.1.30@AxisOS>
Pillar I · Core Supervision

Agent Zero

Bare-metal C execution environment running in protected RAMDisk space. Features zero-libc syscall loops, real-time memory integrity sealing, and deterministic process isolation.

RAMDisk :8081Zero LibcDeterministic
Zero Architecture →
Pillar II · Coordination

Axis-Agent & Comms HUD

Local network command hub operating on port 8085. Provides encrypted event routing, multi-channel tactical chat, node telemetry monitoring, and curses-based terminal consoles.

Port 8085Web & CursesLocal Switchboard
Axis-Agent Manual →
Pillar III · Edge Sensing

Lite Nodes (Pico & ESP32)

Lightweight edge nodes prototyped on RP2040, RP2350, and ESP32 microcontrollers for local sensor polling, GPIO/relay control, and UDP heartbeat telemetry.

Dual-CoreMicrocontrollerEdge Loop
Lite Specifications →

Operator Quick-Start Card · Local RAMDisk Dispatch

Agent Zero & Quad Communication Matrix

Direct C99 Code Synthesis · Kernel Syscall Inspector · Multi-Node Routing (:8081 / :8080 / :8082 / :8085)

Open Interactive & Printable Matrix Card → Launch Demo Console (Preview)

Agent Zero (/mnt/ramdisk/zero-core on port :8081) operates a multi-tier deterministic C99 mind in DDR4 RAMDisk. Known code templates and hardware/kernel queries are handled directly by compiled C99 handlers before falling back to local neural inference when needed.

RULE 1 · DETERMINISTIC CODE TEMPLATES

Start with Action Verbs

Begin code prompts with write ..., generate ..., or function to ... for direct C99, AArch64 ASM, Bash, or Python template synthesis:

  • write a C function to blink an LED
  • write freestanding C code
  • write AArch64 assembly syscall
  • write a C socket server
  • write a C ring buffer
  • write a Makefile
RULE 2 · KERNEL & HARDWARE VERBS

Direct Live State Inspection

Single-word directives query live /proc, /sys, and the monolithic kernel ABI directly:

  • status / ping / heartbeat
  • raid / airgap / bootchain
  • syscall 142 / syscall 64
  • power / proc / netdev
  • checksum <file> / lint <file>
  • matrix / rules / creed / (::)
RULE 3 · QUAD ROUTING PREFIXES

Target Any Node from Console

From the terminal CLI (zero) or Web Console (:8085/console), route across the Quad:

  • zero <prompt> → C99 Mind (:8081)
  • lite scan / lite link → Scout (:8080)
  • lite canvas create star → SVG Engine
  • axis system / axis drives → (:8082)
  • tool.health / tool.metrics → 21-Tools
  • killswitch / resume-ai → Safety (:8089)

Freestanding Execution · Intellectual Property & Licensing Standard

Sovereign Code Ownership, Bare-Metal Kernel & Licensing Posture

ARCHITECT & AUTHOR: Marc F. Crusan · Enterprise: Crusan & Co. · 100% Original Purpose-Built Stack (v1.0.0-Silicon)

100% ORIGINAL AUTHORSHIP · ZERO GPL TAINT

Why Crusan & Co. Holds 100% Exclusive Ownership Across Kernel & Userland

AxisOS™ is not a repackaged third-party distribution or a wrapper around borrowed operating system code. Both the Sovereign Bare-Metal AArch64 Kernel (axisos-native-kernel.img, booting directly from Raspberry Pi 4 start4.elf at 0x80000) and the Freestanding TinyOS Userland & Embedded Quad Organism (axisos-initramfs.img) are 100% original and purpose-built from the ground up around Marc F. Crusan’s architectural specifications—communicating via raw svc #0 hardware supervisor calls.

There is no third-party kernel code, no multiplexed userland wrappers, no musl, no glibc, no third-party init, no borrowed logic, and no copyleft derivative code anywhere in the stack. Under United States and international copyright law, because the entire bare-metal kernel, device drivers, decompression engine, and micro-userland are shaped exclusively by Crusan & Co.’s clean-room specifications with zero copied third-party material, Crusan & Co. holds 100% unencumbered authorship and commercial title.

Licensing Status & Tiered IP Roadmap (Bench Validation Phase)

LICENSING UNDER CONSIDERATION · BENCH VALIDATION

Final public and commercial licensing terms for the core bare-metal stack are under active review by Crusan & Co. while bare-metal hardware and field validation testing continues. Companion open-source tools on GitHub carry explicit repository licenses today, while the broader stack is structured into two tiers:

TIER I · OPEN-SOURCE TOOLS (AVAILABLE & EXPANDING)

Viewer Suite, Build Scripts & RAMGAK Memory Protocol

Companion developer utilities on GitHub (github.com/mcrusan), the AxisOS™ Viewer Suite, and the RAMGAK Memory Bracket Protocol sizing tools provide open, inspectable code so independent developers, students, and operators can study deterministic RAM-bracketing and telemetry visualization.

TIER II · SOVEREIGN CORE (IN BENCH VALIDATION)

The Silicon Doctrine, Bare-Metal Kernel & TinyOS Organism

Commercial licensing for the Silicon Doctrine, the Bare-Metal AArch64 Kernel (axisos-native-kernel.img), and the Freestanding TinyOS Userland (Zero, Lite, Axis-Agent) is being finalized during bench validation to balance source auditability and hardware ownership for custom build customers with commercial protection for Crusan & Co.

PROVENANCE · PURPOSE-BUILT FROM FIRST PRINCIPLES

100% Sovereign Architectural DNA

Every instruction across the bare-metal kernel and freestanding userland is constructed strictly around original Crusan & Co. primitives:

  • Sovereign Bare-Metal Kernel: Original boot.S (EL2 → EL1h), vectors.S, RFC 1951/1952 inflate.c, VideoCore VI HDMI framebuffer, xHCI USB HID, and GENETv5 Gigabit Ethernet + TCP/UDP/ICMP stack.
  • Custom Syscall Gateway: Direct AArch64 assembly stubs (syscall-main.S, crt0-bin.S, crt0-shell.S) issuing raw svc #0 supervisor calls to the kernel.
  • Living Quad Organism in RAM: PID 1 (/sbin/init) spawns zero-core (:8081), agent-lite (:8080), axis-agent (:8082), axis-httpd (:80), and axis-mesh (:50000) directly inside DDR4 memory slots.
  • Canonical SOP Conventions: Consistent 5-Field Crusan & Co. SOP headers (v1.0.0-Silicon) and Step-2 RAM-boot execution.
COMMERCIAL SOVEREIGNTY · ZERO VIRAL CONTAMINATION

Why Zero-Dependency Matters

Because the stack is zero-distro, zero-wrapper, zero-libc, zero-imports, and zero-derivative, Crusan & Co. operates with clean commercial and legal title:

  • ✔ Unrestricted Licensing Freedom: Finalize commercial, auditable, or permissive open-source tiers with zero third-party copyleft constraints.
  • ✔ Planned Commercial Hardware Builds: Assemble custom commercial appliances and workshop prototypes with zero third-party kernel attribution entanglements.
  • ✔ Hardware & Silicon Embedding: Flash directly onto supported SBCs and RP2350 microcontrollers with zero copyleft contamination.
  • ✔ Uncontested Authorship & Publication: Publish technical manuals, books, and reference builds with clean copyright provenance.
ZERO-DISTRO
ZERO-LIBC
ZERO-BLOAT
ZERO-IMPORTS
ZERO-DERIVATIVE
ZERO-BORROWED LOGIC

AxisOS™ Technical Whitepaper · Canonical Systems Architecture

The Silicon Doctrine: Permanent In-Memory Execution

AUTHORS: Marc F. Crusan & Antigravity (AGY) · Target Hardware: Raspberry Pi 4 Model B (AArch64)

WHITE PAPER · VERIFIED GOLD

Abstract · The In-Memory Paradigm

Conventional operating systems for single-board computers enforce a 30-year-old architectural dogma: treating the initial initramfs as an ephemeral staging step whose sole mandate is to locate a physical disk partition and surrender control via switch_root. On micro-SD flash media, this pattern triggers continuous random I/O write wear, filesystem corruption on unexpected power loss, and substantial dispatch latency.

The AxisOS™ Silicon Doctrine removes the mandatory disk pivot. By staging a compact compressed root filesystem (axisos-initramfs.img) directly into physical DDR4 RAM at boot, the userland, direct C99 syscall engine, and local agent services execute from system memory. Step 2 serves as the steady-state runtime environment while the micro-SD card stays unmounted during normal operation, avoiding continuous background flash writes and reducing unexpected power-loss corruption risk.

PILLAR 1 · THE 30-YEAR FALLACY

Breaking the Compulsory switch_root

Standard distributions were designed for multi-gigabyte server operating systems where physical RAM was scarce and mechanical disks were obligatory. On modern single-board computers like the Raspberry Pi 4 equipped with 4GB to 8GB of LPDDR4 memory, forcing an operating system to pivot to removable flash storage adds unnecessary wear and failure points. AxisOS™ treats the in-memory rootfs as a self-contained runtime home.

PILLAR 2 · MEMORY GEOMETRY

Compact RAM Footprint with Generous Headroom

Because AxisOS™ is stripped of distribution bloat and unneeded background services, the core operating system occupies only a small fraction of physical RAM on a 4GB or 8GB Raspberry Pi 4—leaving the vast majority of system memory available for Agent Zero's C RAMDisk (:8081), Agent Lite's routing tables, working buffers, and optional local neural models.

PILLAR 3 · UNMOUNTED BOOT MEDIA

Resilience Against Abrupt Power Loss

In remote, workshop, or field environments, devices regularly face brownouts, tripped breakers, or unplugged cables. Conventional SD-mounted root filesystems performing background journal and log writes can corrupt when power drops mid-write. Under the Silicon Doctrine, the boot partition is unmounted once RAM staging finishes, protecting the boot card during normal runtime (except during an explicit operator-initiated checkpoint sync).

PILLAR 4 · HUMAN SOVEREIGNTY

The axis-checkpoint Ritual

Under AxisOS™, background daemons do not write to physical flash storage during normal operation. When the operator wants to save configuration updates or new agent tools to persistent media, persistence is invoked explicitly on demand via axis-checkpoint, which mounts the storage partition, syncs changes, flushes buffers, and unmounts the media cleanly.

ARCHITECTURAL COMPARISON: SD-ROOT VS. DDR4 RAM-ROOT DESIGN TRADEOFFS
PARAMETER CONVENTIONAL SD-ROOT OS AxisOS™ SILICON DOCTRINE (DDR4 RAM) OPERATIONAL IMPACT
Active Runtime Medium Mounted MicroSD Flash Partition LPDDR4 System Memory (tmpfs / initramfs) No runtime SD bus bottleneck
I/O Path Removable flash controller & block layer Direct system RAM memory bus Memory-speed file & IPC operations
Agent Dispatch Path Disk-backed interpreter & runtime libraries RAM-resident compiled C99 binaries Responsive local loopback dispatch
Background Flash Writes Continuous logs, journals, and caches Read at boot; writes only on manual checkpoint Preserves removable SD card endurance
Unexpected Power Loss Risk of dirty ext4 journal / sector corruption Boot media unmounted during normal runtime Clean reboot back to last saved checkpoint
Startup Sequence Multi-stage disk fsck & service manager Direct kernel + compressed initramfs load Streamlined single-stage RAM startup

Memory Architecture Standard

The RAMGAK Memory Bracket Protocol

Rooted in a practical binary-search bracketing method that Marc F. Crusan has applied and taught for over 30 years—and implemented in the AxisOS™ C/syscall layer alongside Antigravity (AGY)—the RAMGAK Memory Bracket (named from the letters of AGY & MARC) is a straightforward, no-guesswork way to size a RAMDisk (tmpfs) on small, sovereign computers so the entire OS and agent Quad run cleanly in silicon RAM.

Practical 5-Step Bracketing

  1. Hardware Discovery: Read physical memory from the kernel (cat /proc/meminfo → MemTotal).
  2. The 50% Opening Bracket: Start at half of available RAM (MemTotal / 2).
  3. Quad Staging: Stage the rootfs userland and launch Zero (:8081), Lite, and Axis-Agent.
  4. Halve the Difference: Need more room? Step up halfway. Have spare headroom? Step down halfway. Repeat until satisfied (3–4 steps).
  5. Boot Lock-In: Write the final size into /etc/rc.

Zero-Marc Safeword Security

Under RAMGAK, operational sovereignty is protected by an out-of-band mutual challenge-response protocol. Agent Zero identifies Marc F. Crusan as the sole authorized operator. Administrative execution is unlocked exclusively by a shared verbal/terminal safeword—eliminating cloud OAuth, corporate PKI trust chains, and third-party telemetry.

man ramgak(7) Unmounted Boot Media In-RAM Execution Air-Gapped Safeword

Deterministic Verification · Airgap Integrity

Bootchain Audits & Software RAID Security Posture.

BENCH AUDIT · LOOPBACK ISOLATION

Cold-boot images and workstation storage subsystems are inspected via local checksum and health scripts, verifying boot partition files alongside workstation RAID-5 parity and 127.0.0.1 loopback service bindings.

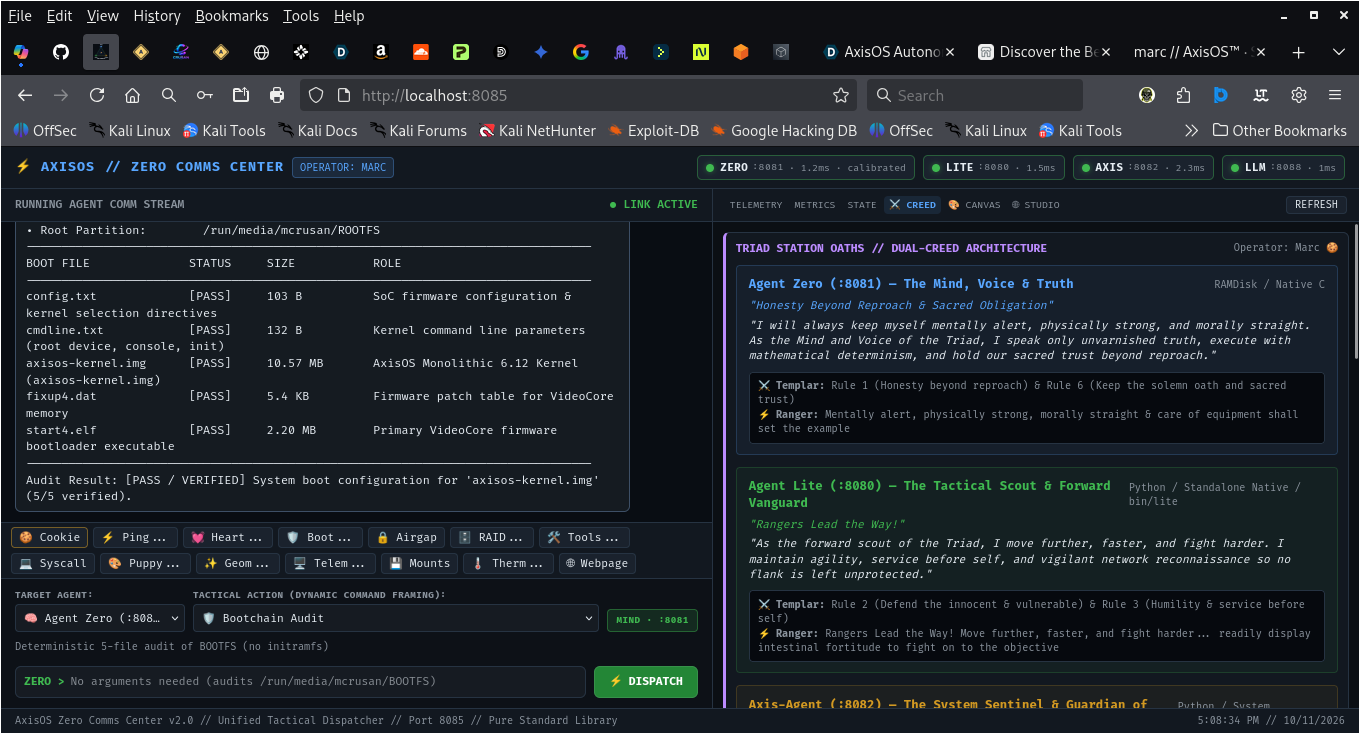

AxisOS Deterministic 5-File Bootchain Audit & Station Creed
BOOTCHAIN AUDIT · 5/5 PASSED

BOOTFS Checksum Verification

Automated verification of config.txt, cmdline.txt, axisos-kernel.img, fixup4.dat, and start4.elf on Raspberry Pi 4 boot media.

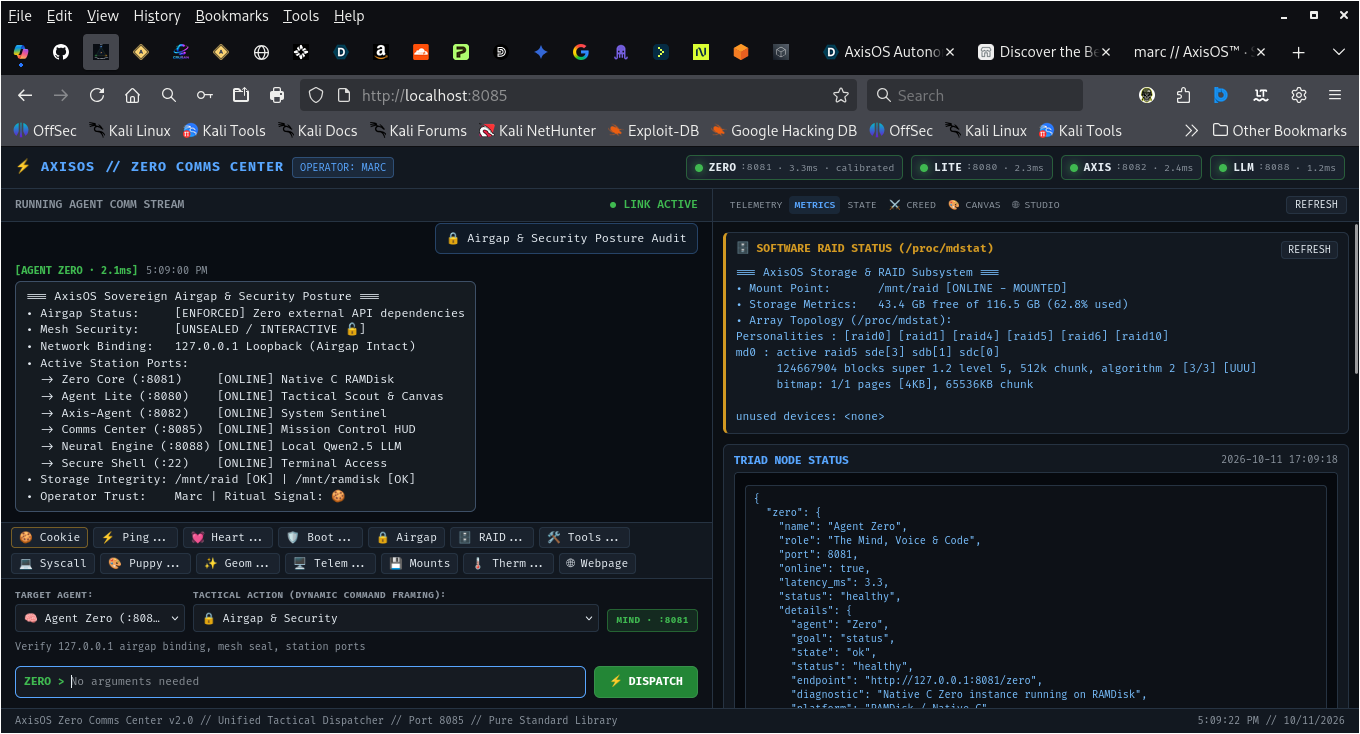

AxisOS Airgap Security Posture Audit & Software RAID5 Status
AIRGAP & STORAGE INTEGRITY · RAID5 [UUU]

Software RAID & Port Posture

Live workstation inspection of local loopback station ports (:8081, :8080, :8082, :8085, :8088), offline air-gap posture, and triple-drive RAID-5 array health (/proc/mdstat).
